Single Channel Peaksimple Data Station

Sale price$1.00


  • Easy USB 2.0 Connection to your Windows PC
  • Eight TTL outputs and one remote start input
  • Four optional contact closures ($159)
  • Includes PeakSimple software
  • Easy to Learn, Easy to Use
  • Packed with State-of-the-Art Features
  • Updates are FREE to download Online
  • Free Technical Support

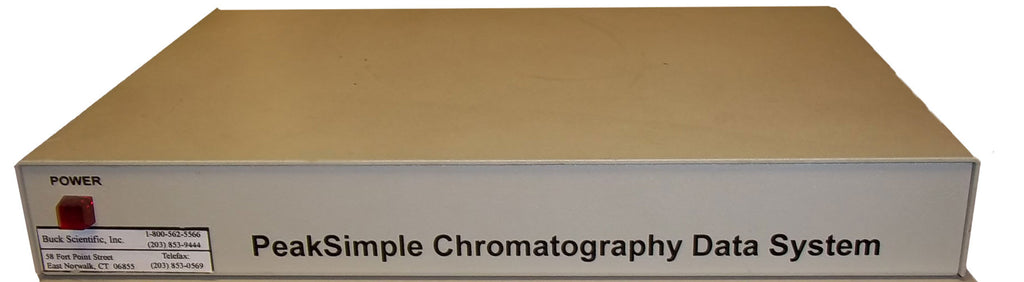

The Model 333 is standard in every 910, 410, or 310 GC. It can also be mounted in a separate box, ready for connection to other manufacturers' GC or HPLC detectors. The Model 333 data system consists of PeakSimple chromatography software for Windows and a single channel, 20-bit high resolution A/D board, with USB 2.0 compliant interface.

When mounted in a Buck GC, the Model 333 controls the column oven temperature program, and the pressure program of the carrier gas electronic pressure controller (EPC). The eight available TTL outputs are connected internally within the GC to control functions such as valve rotation, gas solenoid actuation, autosampler injection, etc.

When mounted in a separate box, the temperature and pressure control outputs are available for use, but are not connected to anything. The eight TTL outputs can optionally be wired to a bank of eight single-pole, dual-throw mechanical relays with screw terminals for easy connection to any device which operates from a contact closure. A remote start input allows run initiation from the user's GC or HPLC system. Data can be acquired at rates up to 50Hz.

The 220 volt system is supplied with a UL, CSA, and CE/VDE approved universal power supply, which will operate on any AC voltage from 100-250 volts. This unit requires a USB 2.0 compliant port on the PC. It is not compatible with older USB 1.0 or 1.1 compliant ports.

PeakSimple software has been continuously developed, refined, and improved since 1988 by a dedicated team of working chromatographers. These chromatographers use the software on a daily basis, and strive to simplify and enhance every aspect of PeakSimple so our customers will benefit. New features are added to PeakSimple several times per year, and the later version is always FREE to download online, along with helpful tutorials. When you call Buck technical support (also FREE), a knowledgeable technician will answer your questions right away! No complicated phone menus, no waiting on hold!

PeakSimple FEATURES:

  • 3D chromatogram display
  • Built-in FTP Capability
  • Click & Drag Retention Windows
  • Baseline Subtraction
  • Chromatogram Overlay
  • DDE Links
  • Component Tables
  • Multi-level Calibrations
  • Data Merge across channels
  • Autosampler Queue
  • Batch Reprocessing
  • Built-in Data Validation
    ...and more!

Most PeakSimple functions are launched from the chromatogram window, and are so user friendly that most operators can produce results almost immediately. ToolTips makes learning your way around PeakSimple even easier just hold your mouse cursor over any icon or checkbox to read the onscreen How-To instructions.
