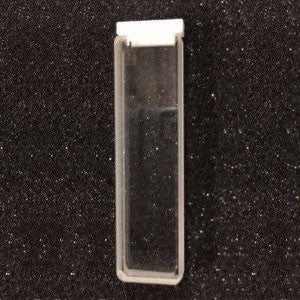

Type 1 Quartz Cuvette with 1mm path length and 0.4ml capacity
The Wavelength range for Quartz is 220-3800 nm
• Height: 45mm
• Width: 12.5mm
• Path Length: 1mm
• Capacity: 0.4ml
• P/N: 1-Q-1

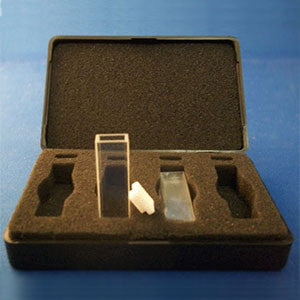

Type 1 Quartz Cuvette with 2mm path length and 0.7ml capacity
• Height: 45mm
• Width: 12.5mm
• Path Length: 2mm
• Capacity: 0.7ml
• P/N: 1-Q-2

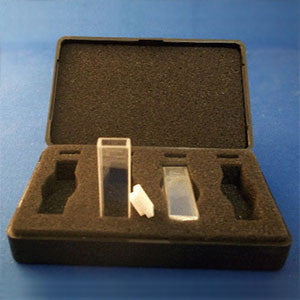

Type 1 Quartz Cuvette with 5mm path length and 1.7ml capacity
• Height: 45mm
• Width: 12.5mm
• Path Length: 5mm
• Capacity: 1.7ml
• P/N: 1-Q-5

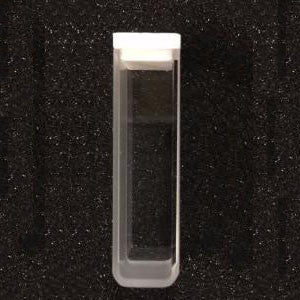

Type 1 Quartz Cuvette with 10mm path length and 3.5ml capacity
• Height: 45mm
• Width: 12.5mm
• Path Length: 10mm
• Capacity: 3.5ml
• P/N: 1-Q-10

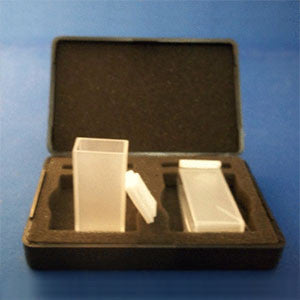

Type 1 Quartz Cuvette with 20mm path length and 7.0ml capacity
• Height: 45mm
• Width: 12.5mm
• Path Length: 20mm
• Capacity: 7.0ml
• P/N: 1-Q-20

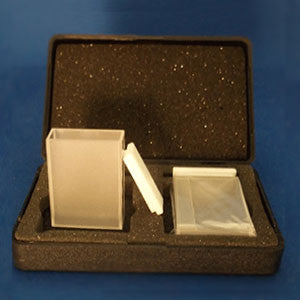

Type 1 Quartz Cuvette with 30mm path length and 10.5ml capacity
• Height: 45mm
• Width: 12.5mm
• Path Length: 30mm
• Capacity: 10.5ml
• P/N 1-Q-30

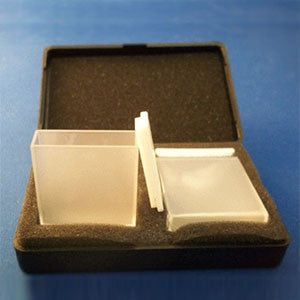

Type 1 Quartz Cuvette with 40mm path length and 14.0ml capacity
• Height: 45mm
• Width: 12.5mm
• Path Length: 40mm
• Capacity: 14.0ml
• P/N: 1-Q-40

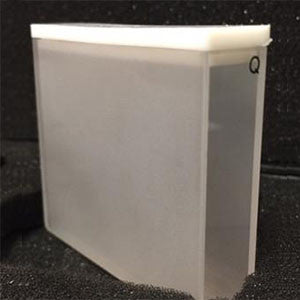

Type 1 Quartz Cuvette with 50mm path length and 17.5ml capacity
• Height: 45mm
• Width: 12.5mm
• Path Length: 50mm
• Capacity: 17.5ml
• P/N 1-Q-50
Our Quartz cuvettes are heat fused for a longer life, and come with a one year warranty.
