Type 3 Quartz Fluorimeter Cuvette

Type 3 Quartz Cuvette with a 5mm path length and 1.7ml capacity.

The Wavelength range for Quartz is 220-3800 nm.

• Height: 45mm
• Width: 12.5mm
• Path Length: 5mm
• Capacity: 1.7ml
• P/N: 3-Q-5

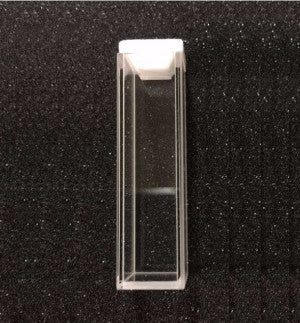

Type 3 Quartz Cuvette with a 10mm path length and 3.5ml capacity.

• Height: 45mm
• Width: 12.5mm
• Path Length: 10mm
• Capacity: 3.5ml
• P/N: 3-Q-10

Type 3 Quartz Cuvette with a 20mm path length and 7.0ml capacity.

• Height: 45mm
• Width: 12.5mm
• Path Length: 20mm
• Capacity: 7.0ml
• P/N: 3-Q-20

Type 3 Quartz Cuvette with a 40mm path length and 10.5ml capacity.

• Height: 45mm
• Width: 12.5mm
• Path Length: 40mm
• Capacity: 10.5ml
• P/N: 3-Q-40

Type 3 Quartz Cuvette with a 50mm path length and 14.0ml capacity.

• Height: 45mm
• Width: 12.5mm
• Path Length: 50mm
• Capacity: 14.0ml
• P/N: 3-Q-50

*Type 3 cuvettes are polished on ALL four sides.

Our cuvettes are heat fused for a longer life, and come with a one year warranty.
